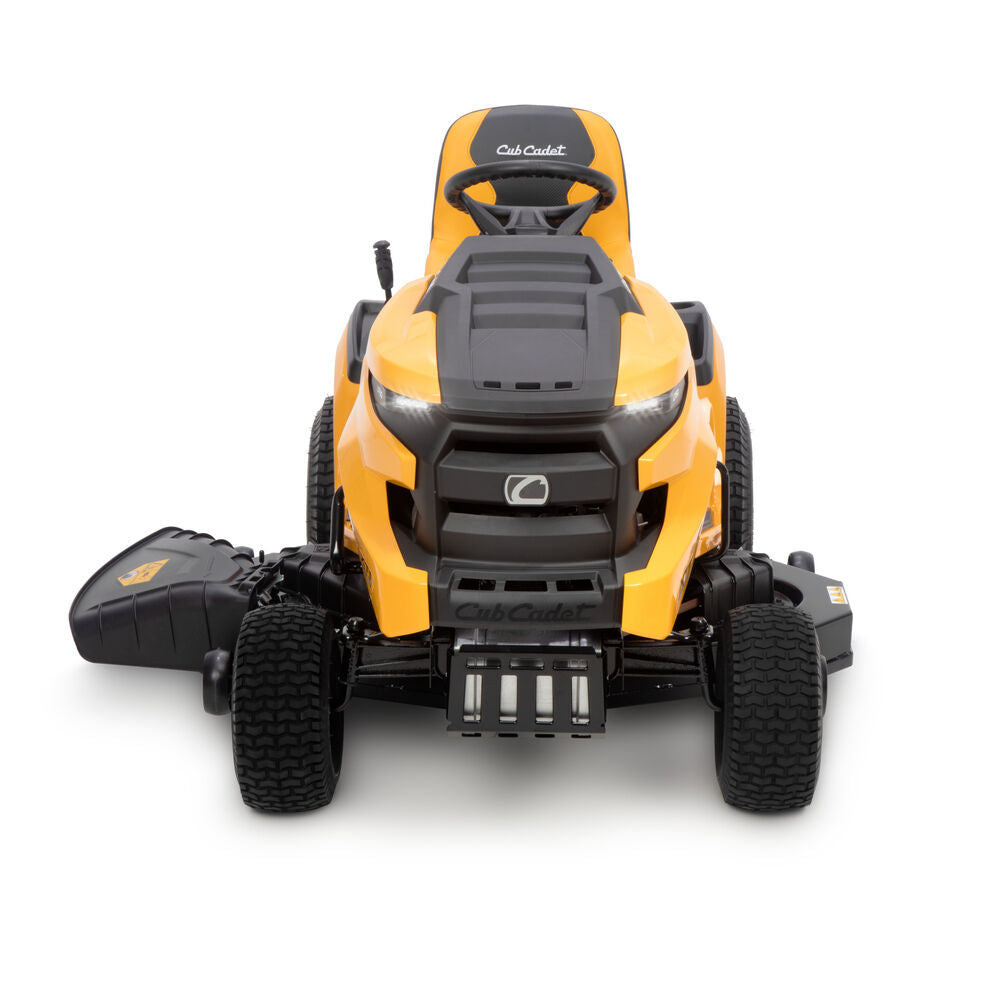

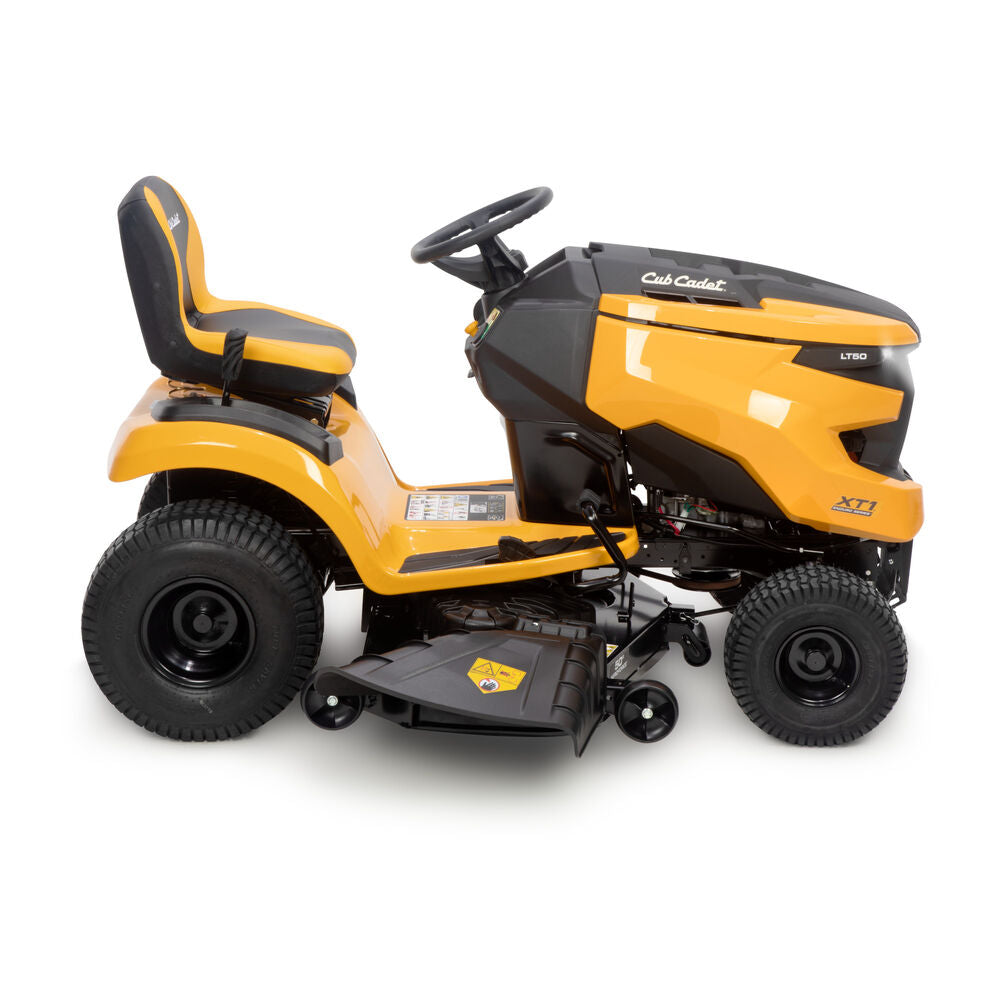

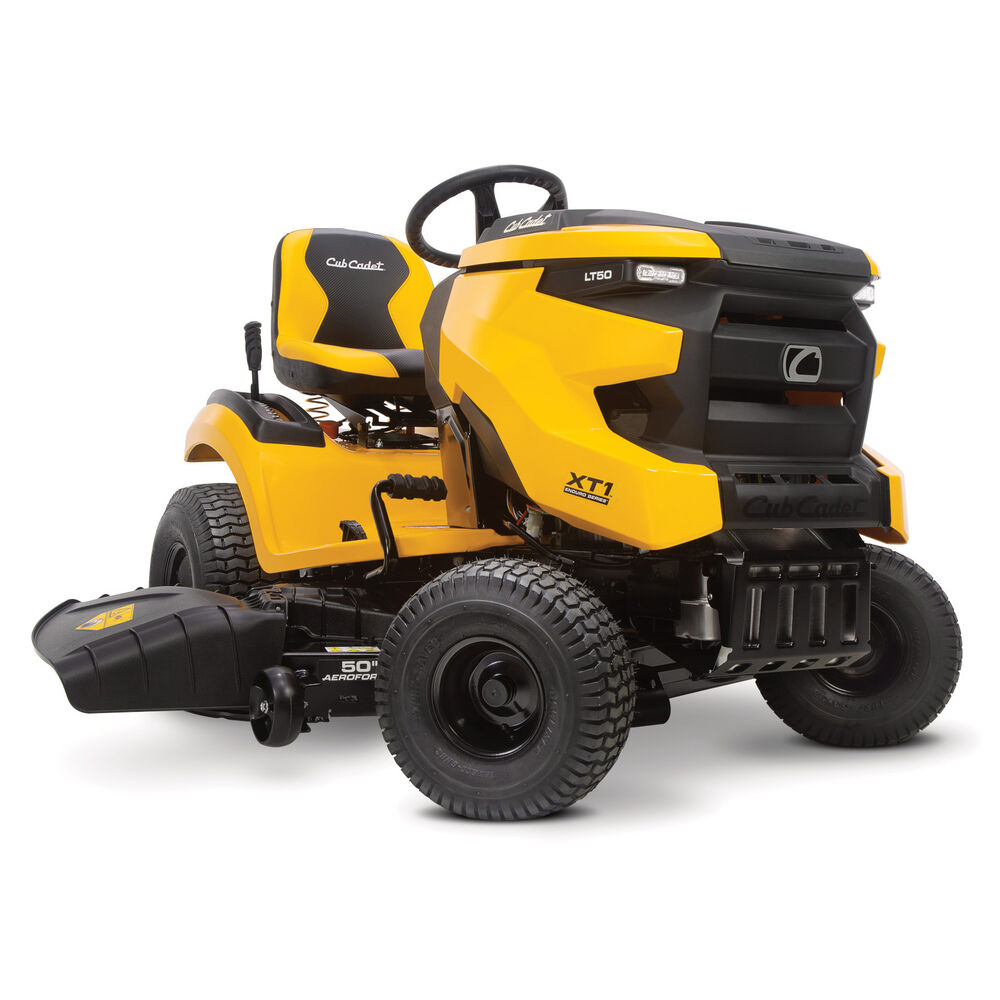

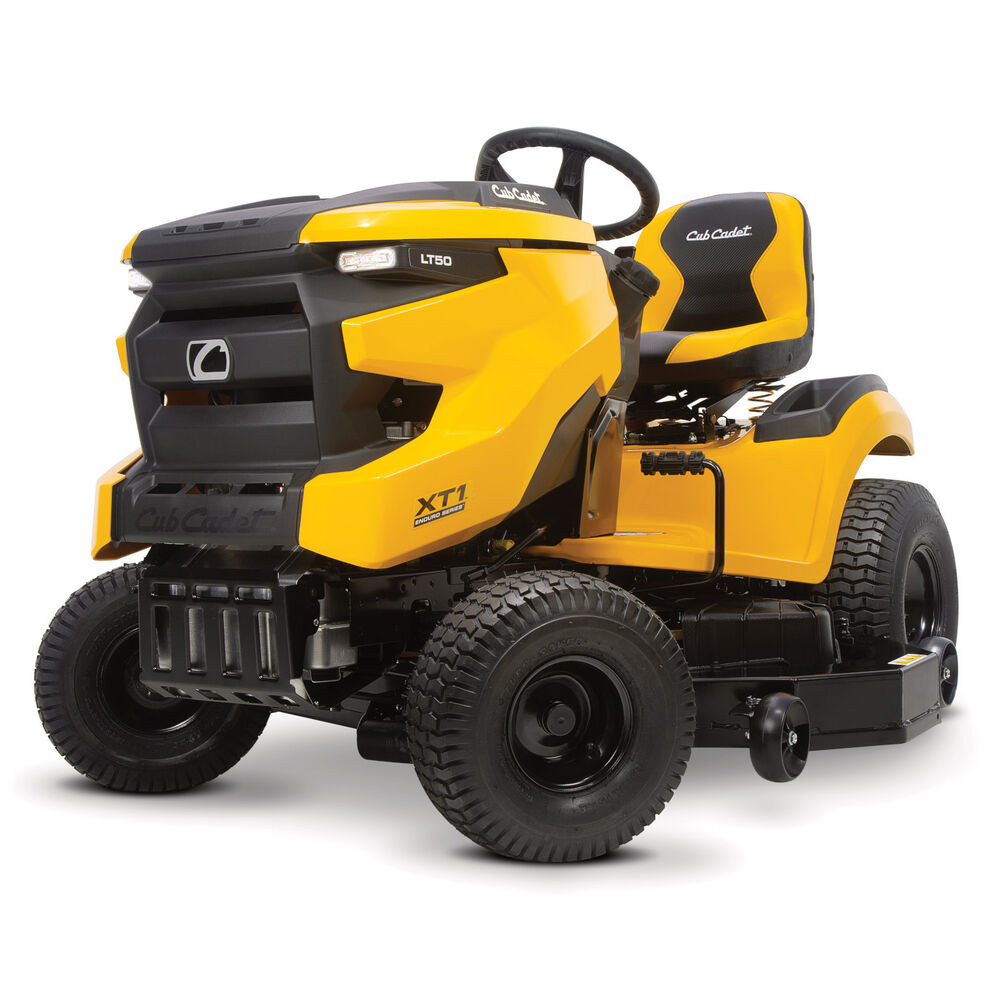

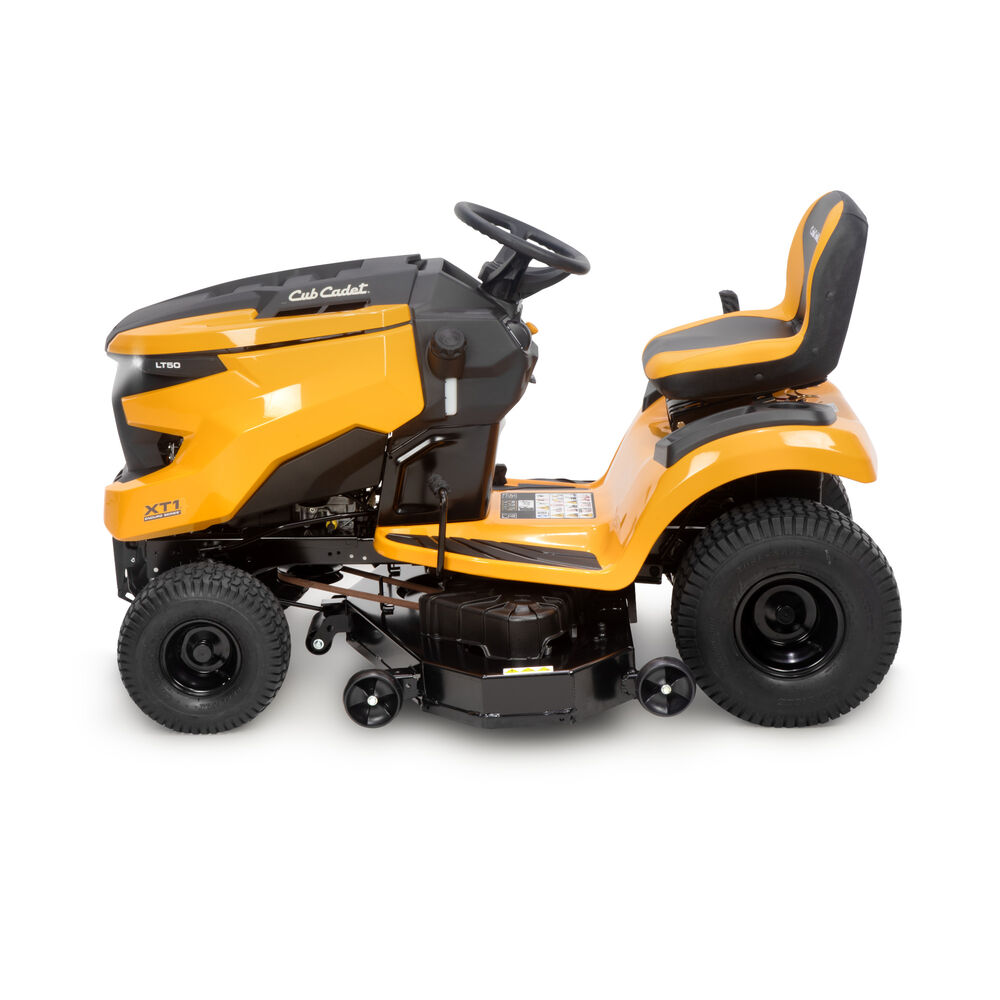

    CUB CADET XT1-LT50 FAB 13AQA1TLA10

    $2,649.00

    Mastercard Visa Apple Pay Google Pay PayPal
    Add to compare
    Add to wishlist
    SKU: 13AQA1TLA10 Category:
    Description



    • The Cub Cadet XT1 LT50 FAB is powered by a 24 hp KOHLER 7000 Series twin cylinder engine.
    • 50-inch fabricated, 11-gauge, triple-blade AeroForce(TM) deck design that optimizes airflow and maximizes suction to reduce clumping during discharge and improves bagging performance while delivering the pristine Cub Cadet Signature Cut(TM).
    • Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
    • 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours/limited lifetime fabricated deck shell.
    • Ideal for mowing up 2-4 acres of mostly flat terrain and a few obstacles.
    Engine
    • Engine Brand:  Kohler®
    • Engine Model:  KT735-3076
    • Engine Displacement:  725cc
    • Engine Output:  24 HP
    • Fuel Tank Capacity:  3 gal.
    • Cylinders/Material:  Twin
    • Engine Start:  Key
    • Engine Oil Capacity:  2 qt.
    • Lubrication:  Fully pressurized
    • Battery:  12V 230 cold crank amps AGM
    • Charging System:  12 amp regulated
    • Fuel Gauge:  Fuel sight window
    • Governor:  Manual
    • Choke:  Choke-a-matic
    • Air Filter:  Dual element
    • Oil Filter:  Yes
    Drive System
    • Transmission:  Hydrostatic, foot
    • Forward Speed:  5.5 MPH
    • Reverse Speed:  3 MPH
    • Rear Axle : 3/4″ w/dual PM steel drive hubs
    • Transmission Housing:  Cast aluminum
    • Transmission Type:  Tuff Torq K46
    • Engine to Transmission:  Heavy-duty belt
    Cutting Deck
    • Deck Cutting Width:  50″
    • Cutting Modes:  Discharge/mulch/bagging
    • Deck Wash:  Yes
    • Deck Material:  Steel, 11-gauge
    • Deck Attach/Removal:  QuickAttach™ (no tools required)
    • Deck Engagement (PTO):  Electronic fingertip engagement
    • Deck Construction:  Fabricated
    • Spindle Construction:  3/4″ with steel cap and Triple Lip Sealed
    • Blade(s):  Triple Blades
    • Deck Lift:  Lever
    • Cutting Height Range:  1″ – 4″
    • Anti-Scalping:  2 Ball/2 Ball/Nose Roller
    • Deck Positions:  12-position
    Chassis
    • Frame:  Fully robotically-welded frame with new e-coating corrosion defense system
    • Front Axle(s):  Cast iron
    • Turning Radius:  16″
    • Front Tires:  15″ x 6″ sleeve bearing
    • Rear Tires:  20″ x 8″
    • Tire Tread:  Turf Saver
    • Bumper: Optional
    • Rear Tow Hitch:  Included
    • Corrosion Protection:  Yes
    Controls
    • Cruise Control:  Included
    • Brakes:  Disc
    • Steering Wheel Control:  Manual sector and pinion
    • Headlight(s):  2 – LED
    • Display:
    Comfort
    • Seat Type:  15″ high-back seat
    • Seat Suspension:  Seat spring
    • Seat Adjustment:  Lever
    • Floor Mats:  Rubber
    Dimensions
    • Dimensions:  L/W/H 68″/60″/42.5″
    • Weight (approx.):  500 lbs.
    • Wheelbase: 47″
    Additional Specifications
    • Mulch Kit:  Optional
    • Discharge Chute:  Included
    • Cup Holder:  Included
    • Operator Presence System:  Included
    • Bagger:  Optional
    • Model Number:  13AQA1TLA10
    Warranty
    • Warranty:  3-year/unlimited hour warranty
    • Frame Warranty:  5-year/unlimited hour warranty
    • Front Axle Warranty:  5-year/unlimited hour warranty
    • Deck Shell Warranty:  Limited lifetime warranty
    • AIR FILTER:  32 883 09-S1 OR 490-200-K054
    • OIL FILTER:  12 050 01-S
    • ENGINE OIL: 25 357 65-S OR 490-000-C044
    • FUEL FILTER:  24 050 13-S
    • TRANS FLUID: TT-187Q0899000
    • SPARK PLUG:  25 132 23-S OR RC12YC
    • DECK BELT:  954-04077A
    • DRIVE BELT:  954-05027B OR 490-501-C061
    • BLADES:  742P05094 OR SET 490-110-C193
    • XTREME BLADE:   742P05094-X OR SET 490-110-C204
    • IGNITION KEY:  925-1745A
