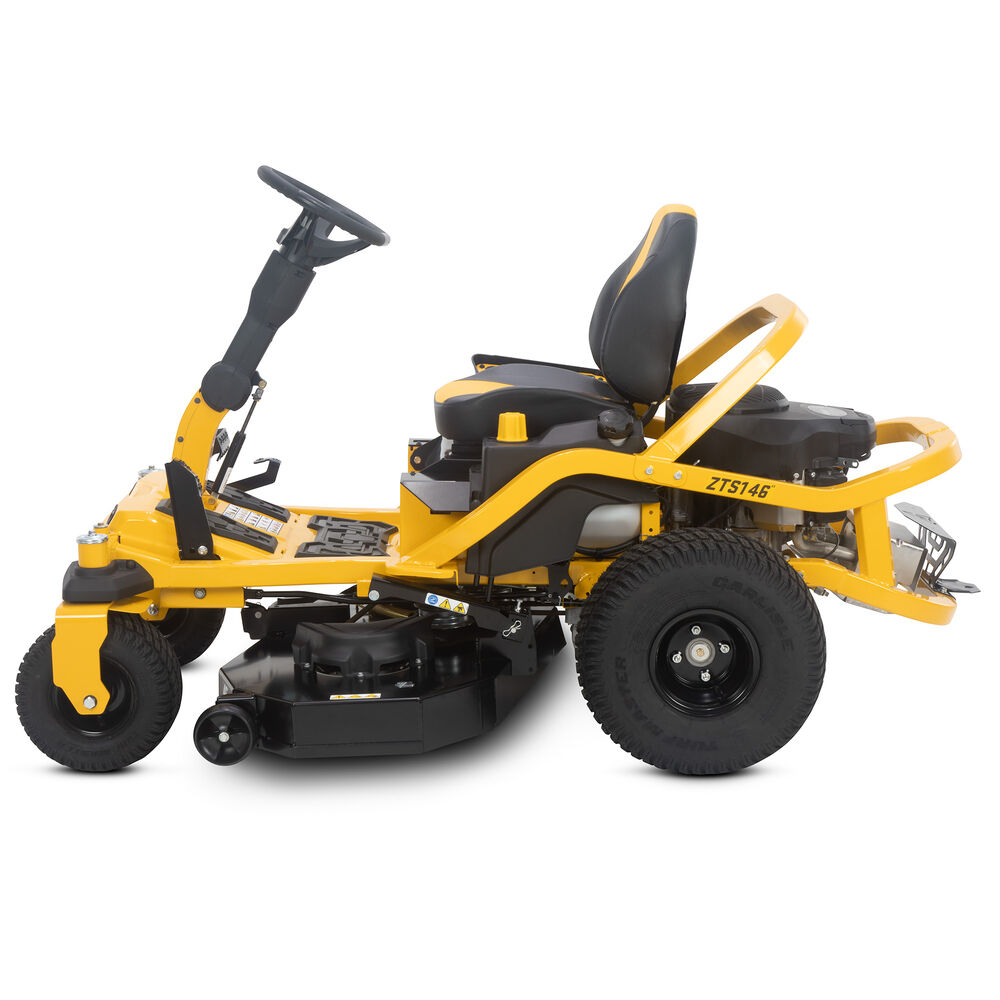

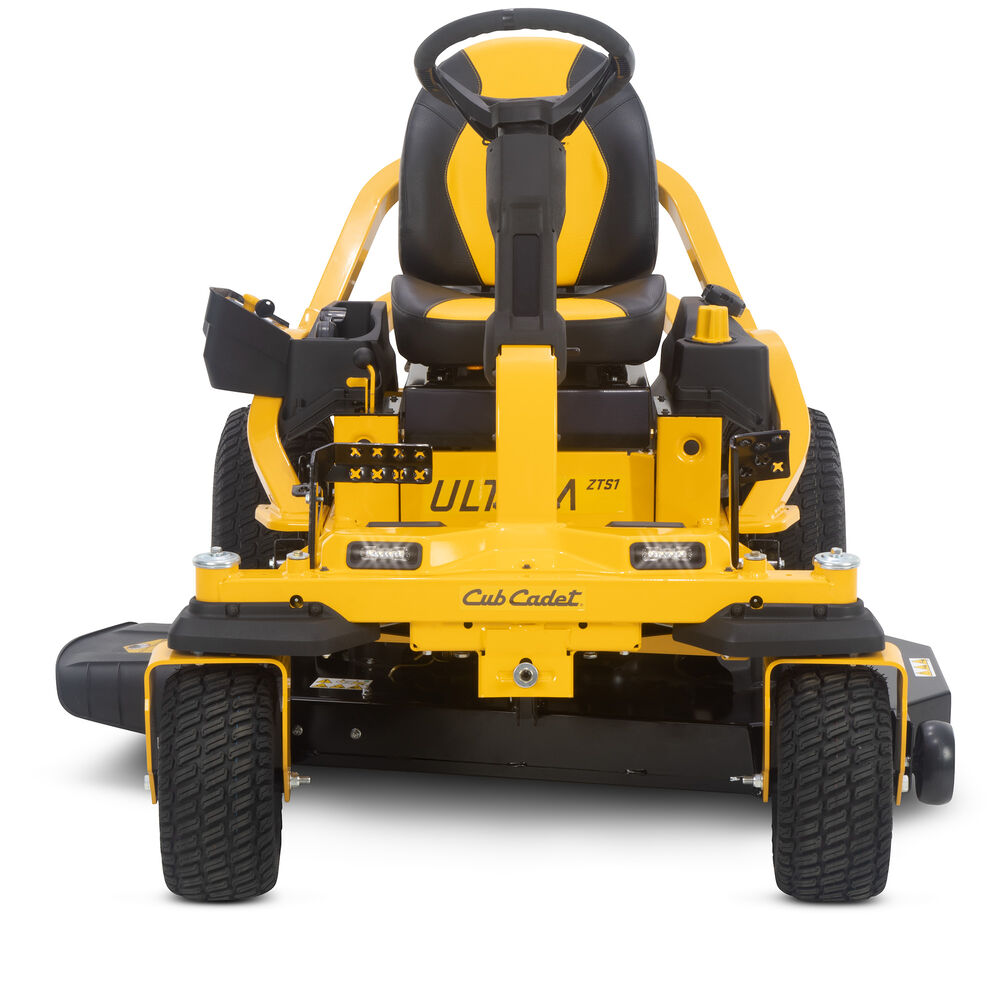

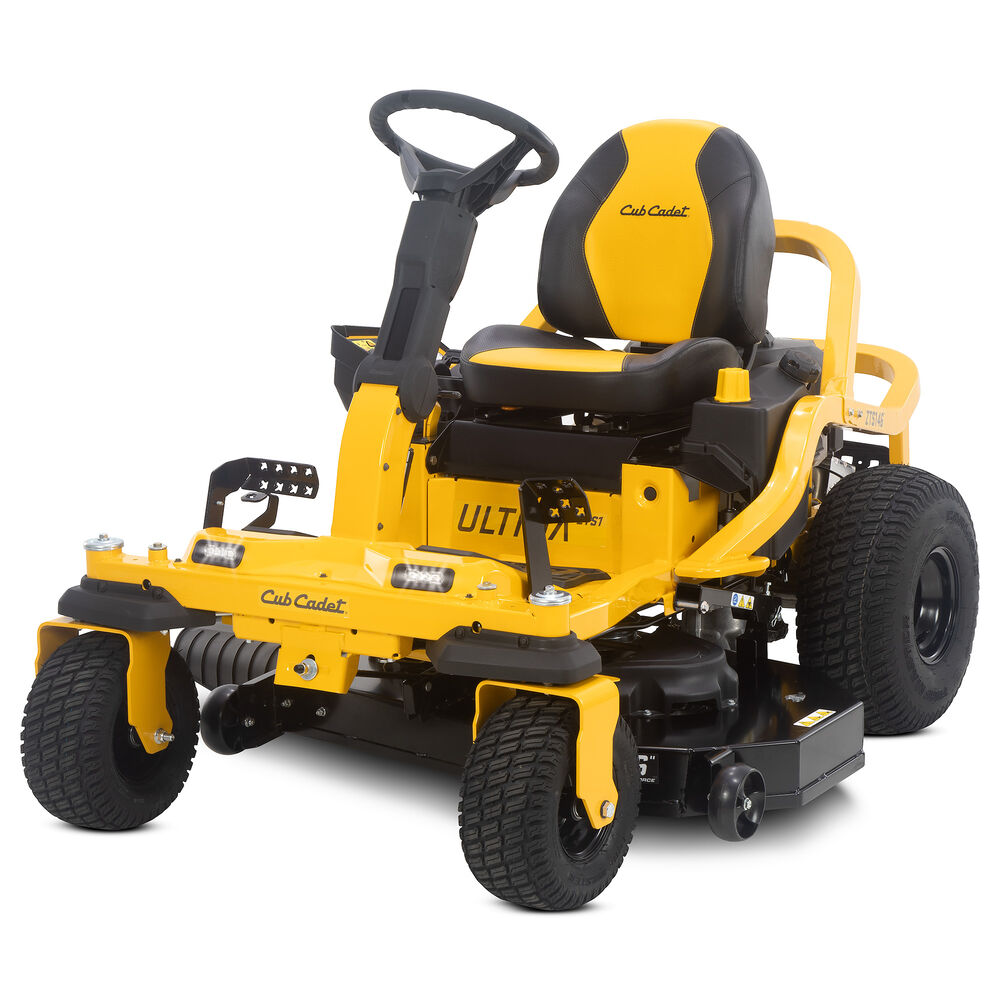

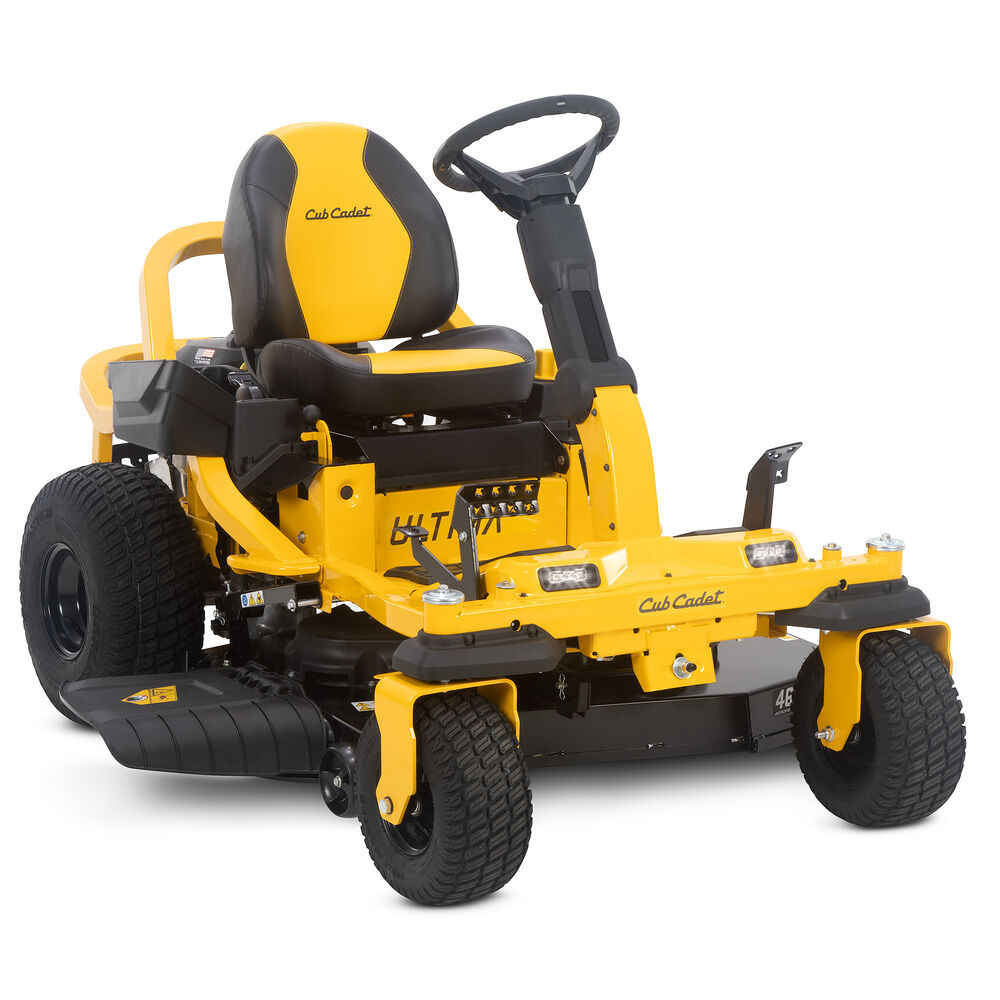

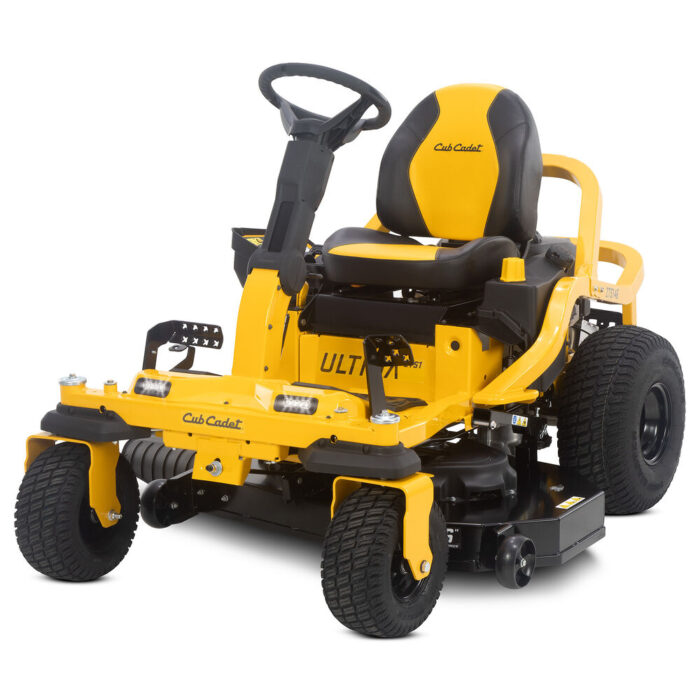

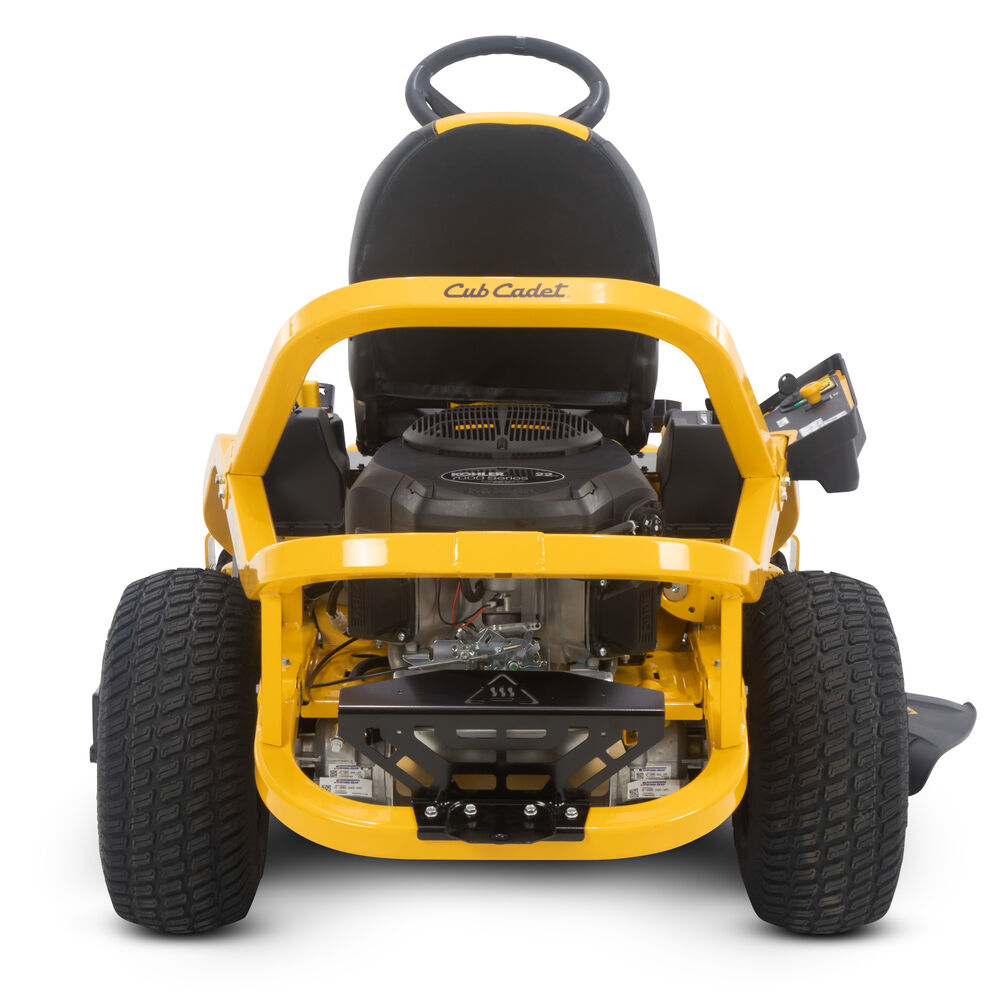

    CUB CADET ULTIMA ZTS1 46 17ARGBYNA10

    $4,499.00

    Mastercard Visa Apple Pay Google Pay PayPal
    Add to compare
    Add to wishlist
    SKU: 17ARGBYNA10 Category:
    Description

    ZTS1 46

    • Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
    • A 22 HP/725cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
    • Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish



    Engine
    • Engine Brand: Kohler®
    • Engine Model: 7000 Series
    • Engine Model Number: KT725
    • Engine Displacement: 725cc
    • Engine Output: 22HP
    • Starter Type: Electric
    • Fuel Tank Capacity: 3.5 gal. US (13.25 L)
    • Cylinders: Twin
    • Engine Start: Ignition Key
    • Engine Oil Capacity: 2.0 qt. US (1.89 L)
    • Lubrication: Fully pressurized
    • Charging System: 12 amp regulated
    • Fuel Gauge: No
    • Governor: Mechanical
    • Choke: Separate Choke
    • Air Filter: Dual element
    • Oil Filter: Yes
    • Fuel Delivery: Carburetor
    Battery
    • Battery: 210 CCA
    • Battery Type: AGM (Absorbent Glass Mat)
    • Battery Voltage: 12V
    Drive System
    • Transmission: Hydro-Gear EZT 2200
    • Forward Speed: 7 MPH / 11.3 km/h
    • Reverse Speed: 3.5 MPH / 5.6 km/h
    • Drive System: Hydrostatic
    Cutting Deck
    • Deck Cutting: Width 46 in
    • Deck Wash: No
    • Deck Material: 11-gauge steel
    • Deck Engagement: (PTO) Electric
    • Deck Construction: Fabricated
    • Blade(s): 2
    • Deck Lift: Foot pedal with Dial Adjust
    • Cutting Height Range: 1” – 4.5”
    • Anti-Scalping: 2 gauge wheels
    • Deck Positions: 15
    Warranty
    • Warranty: 3-year unlimited hours
    • Frame Warranty: Lifetime Limited
    • Deck Shell Warranty: Lifetime limited
    • Commercial Warranty: No
    Chassis
    • Frame: 2” x 2” tubular steel
    • Turning Radius: 0°
    • ROPS: No
    • Rear Tow Hitch: Yes
    • Corrosion Protection: Yes
    Controls
    • Cruise Control: No
    • Brakes: Disc
    • Steering Control: Steering Wheel
    Comfort
    • Seat Type: 20″ high back
    • Armrests: No
    • Seat Adjustment: Lever
    • Front Caster Suspension: No
    Wheels
    • Rear Tires: 20”x 8”-8″
    • Front Tires: 13″x 6.5″-5″
    • Tire Tread: Turf Master / Multi Trac
    Additional Specifications
    • Hour Meter: No 490-900-C075
    • Mulch Kit: Available separately
    • Headlight(s): Dual-LED
    • Cup Holder: Yes
    • Operator Presence System: Yes
    • Parking Brake: Foot Operated
    • Model Number: 17ARGBYNA10



    • AIR FILTER:  32 883 09-S1 OR 490-200-K054
    • OIL FILTER:  12 050 01-S
    • ENGINE OIL: 25 357 65-S OR 490-000-C044
    • FUEL FILTER:  25 050 22-S1
    • SPARK PLUG:  25 132 23-S OR RC12YC
    • DECK BELT:  754P06135 OR 490-501-C082
    • DRIVE BELT: 954-04317A
    • BLADES :  742P05510 OR SET 490-110-C192
    • XTREME BLADES: 742P05510-X OR SET 490-110-C203
    • IGNITION KEY:  925-1745A
    • HOUR METER KIT: 490-900-C075
