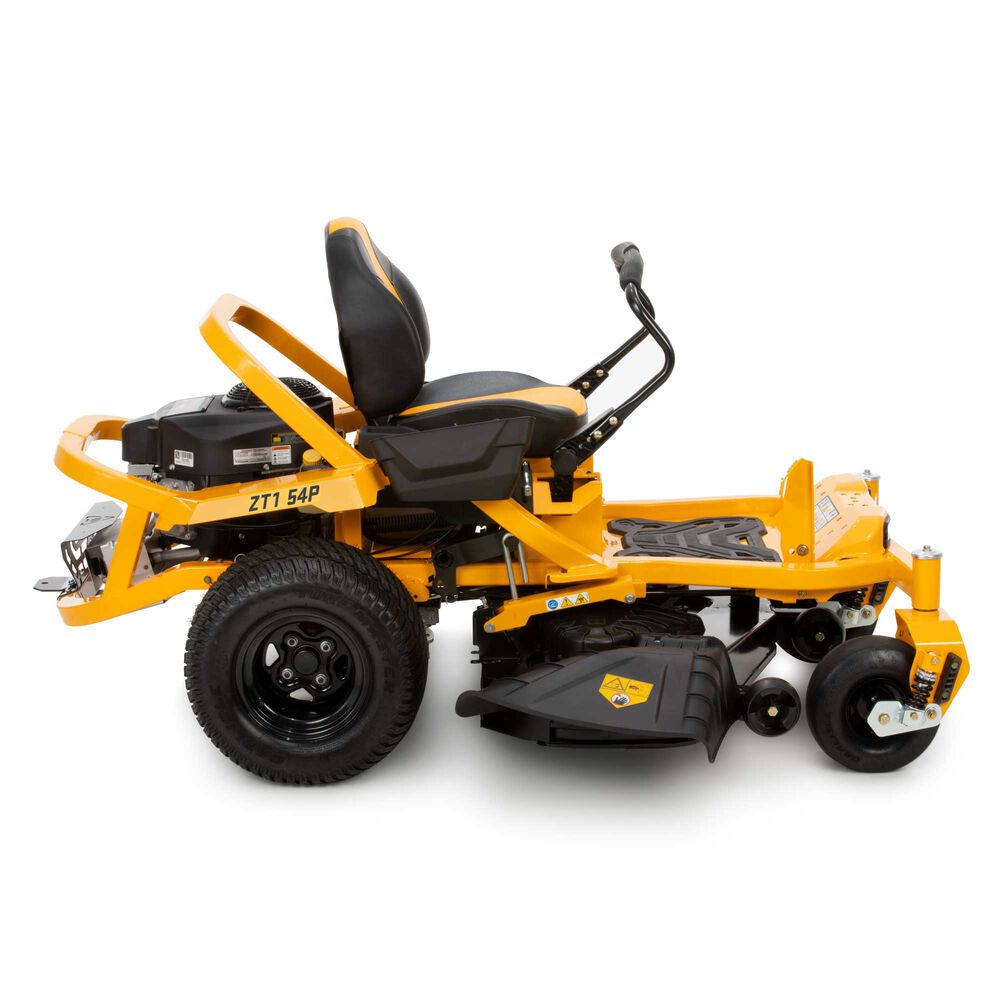

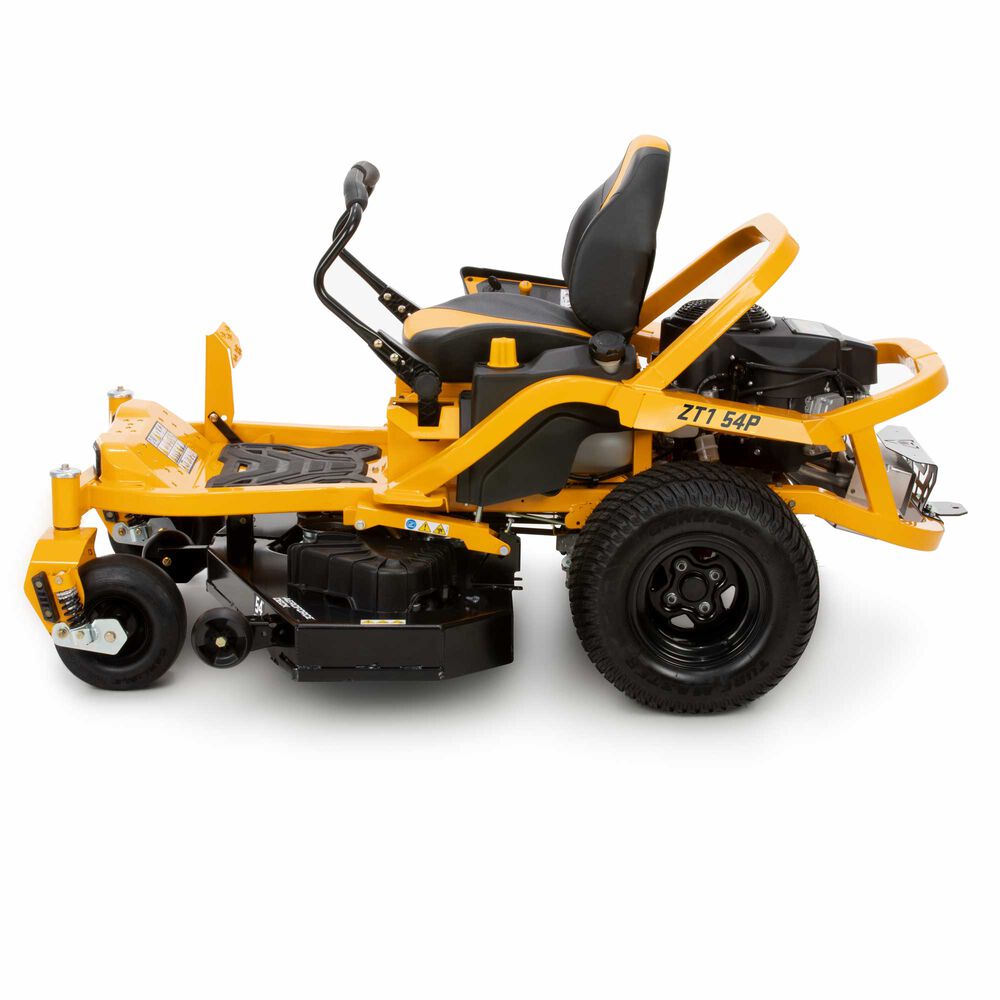

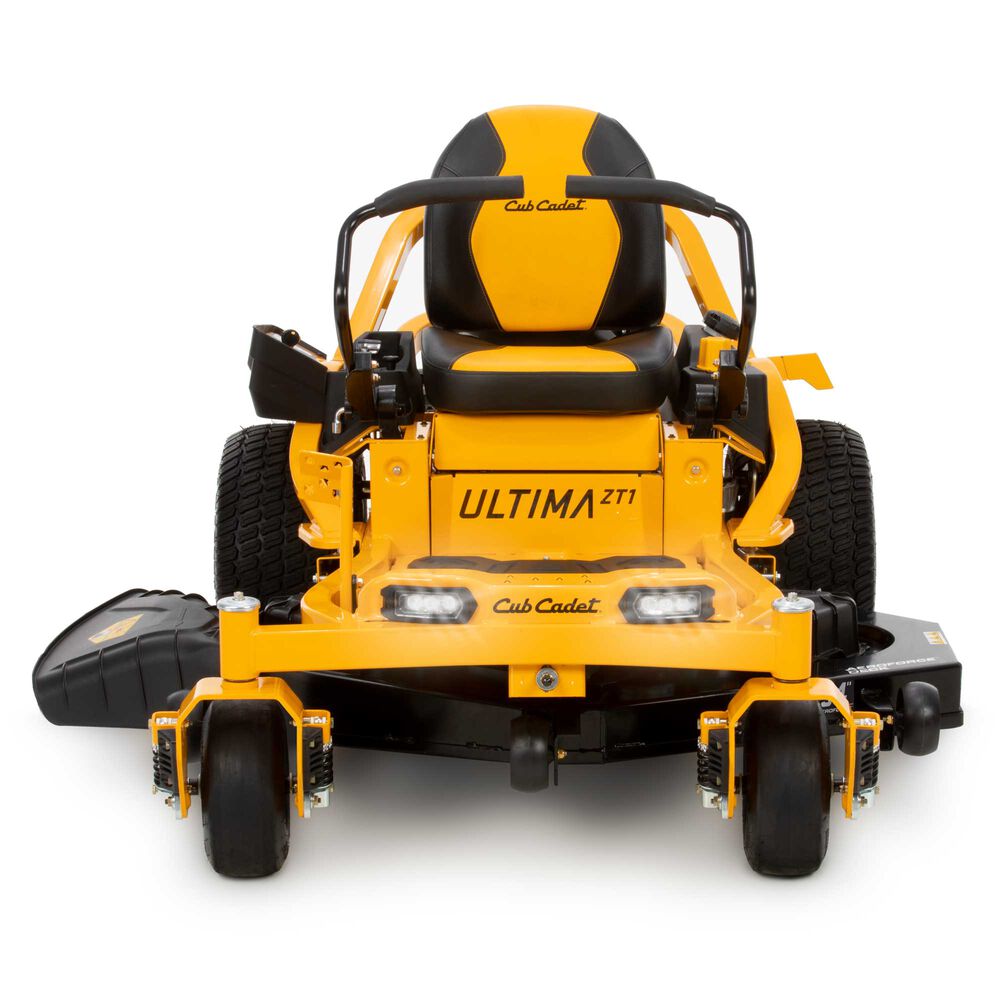

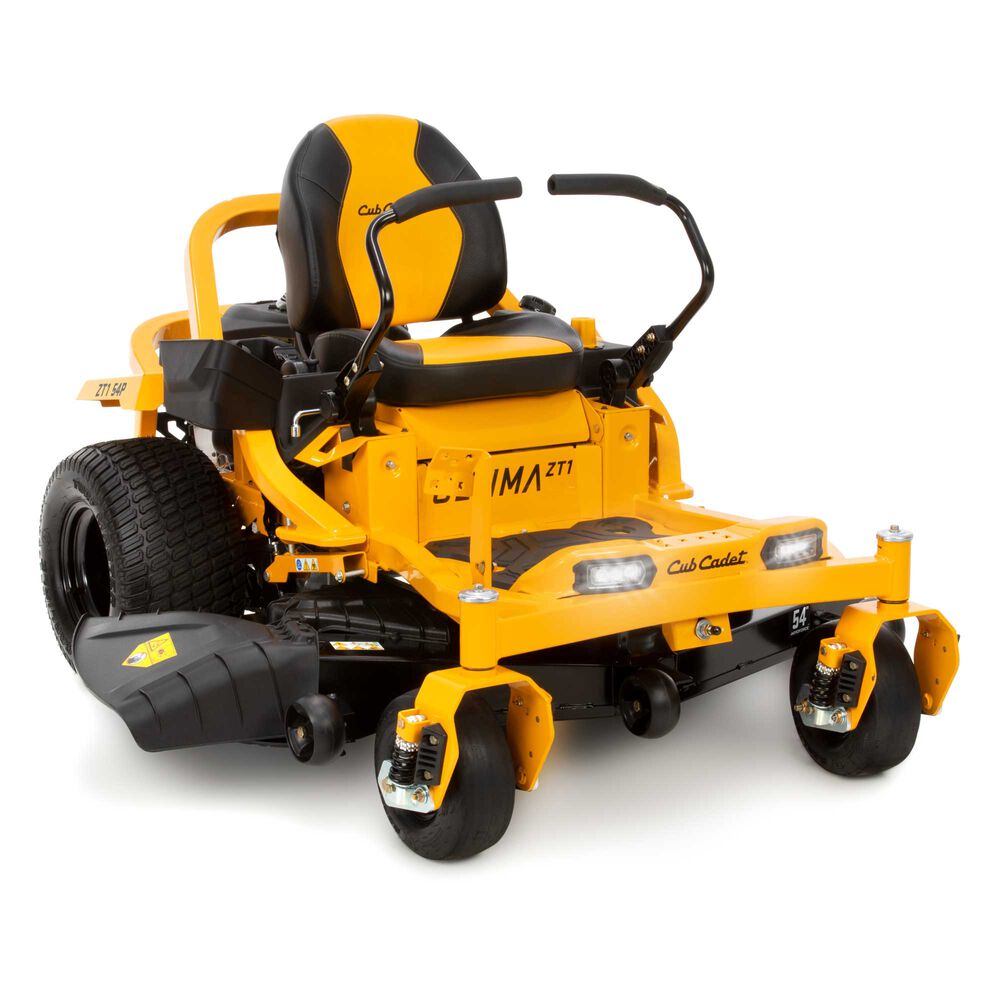

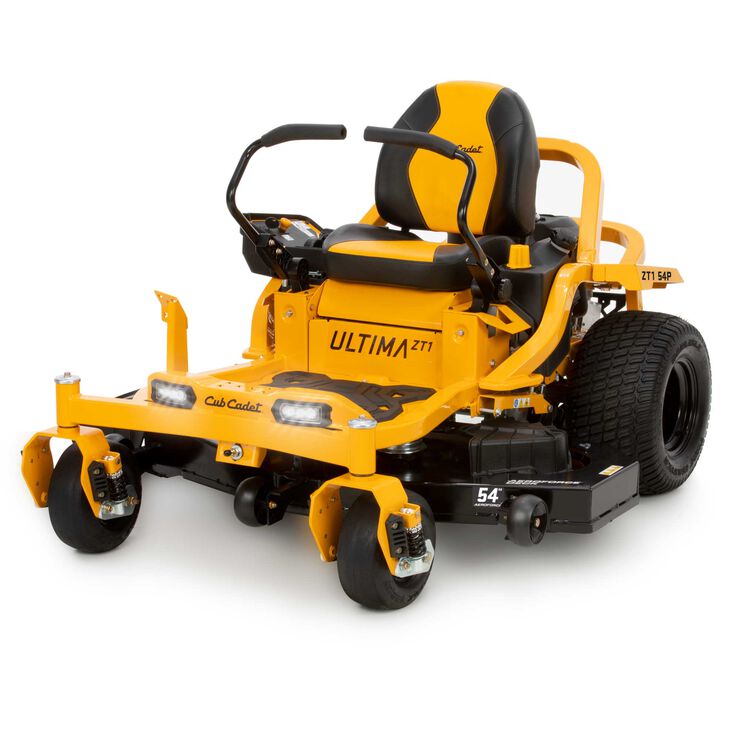

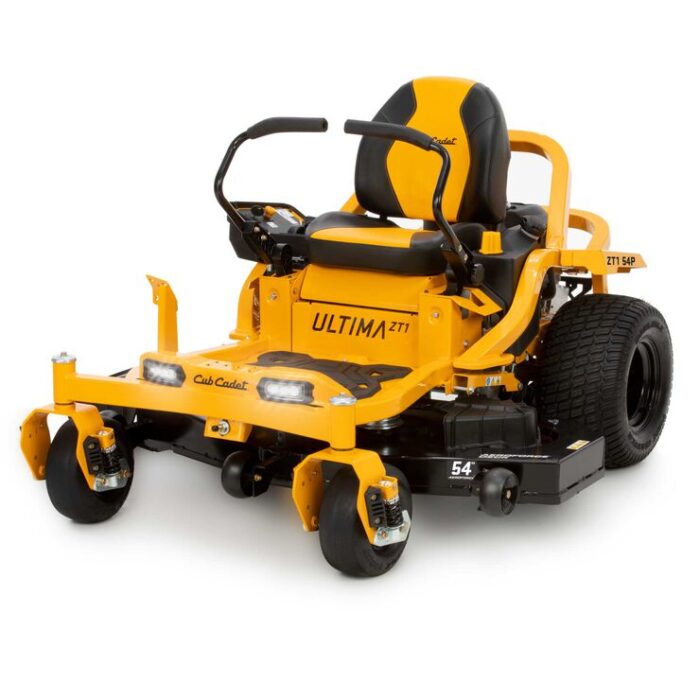

Cub Cadet ULTIMA ZT1 54 KW P 17AIEACMA10

$3,999.00

Mastercard Visa Apple Pay Google Pay PayPal
SKU: 17AIEACMA10 Category:
Description
ZT1 54 KW P
  • A premium 23 HP/726cc Kawasaki FR691V twin-cylinder OHV engine, commercial-grade power that meets your yard’s toughest demands
  • Equipped with additional high-performance features like front caster suspension, steel fenders and larger rear wheels help you power through challenging terrain with greater comfort.
  • Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish

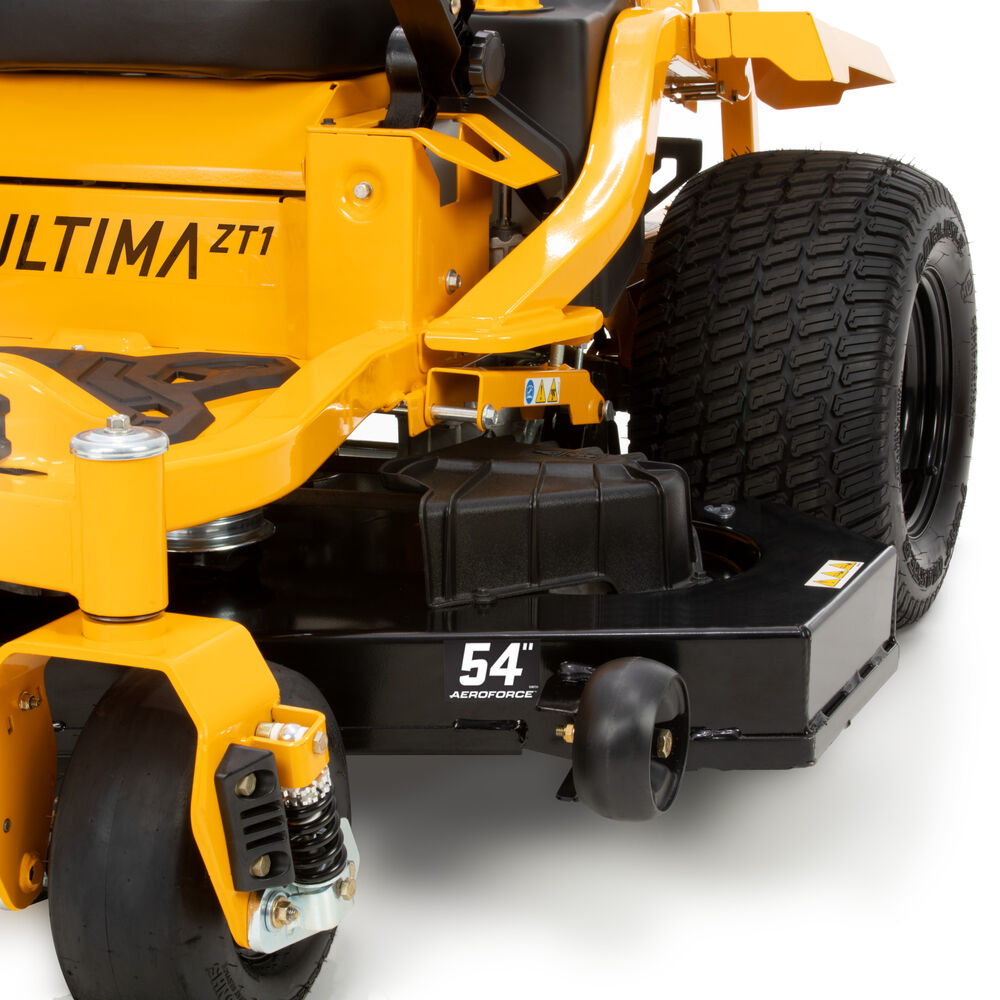

  • 54-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
Engine
  • Engine Brand: Kawasaki®
  • Engine Model: FR Series
  • Engine Model Number: 691V-GS05
  • Engine Displacement: 726cc
  • Engine Output: 23HP
  • Starter Type: Electric
  • Fuel Tank Capacity: 3.5 gal. US (13.25 L)
  • Cylinders: Twin
  • Engine Start: Ignition Key
  • Engine Oil: Capacity 2.1 qt US ( 2 L)
  • Lubrication: Fully pressurized
  • Charging System: 12 amp regulated
  • Fuel Gauge: No
  • Governor: Mechanical
  • Choke: Separate Choke
  • Air Filter: Single element
  • Oil Filter: Yes
  • Fuel Delivery: Carburetor
Battery
  • Battery: 210 CCA
  • Battery Type: AGM (Absorbent Glass Mat)
  • Battery Voltage: 12V
Drive System
  • Transmission: Hydro-Gear EZT 2200
  • Forward Speed: 7 MPH / 11.3 km/h
  • Reverse Speed: 3.5 MPH / 5.6 km/h
  • Drive System: Hydrostatic
Cutting Deck
  • Deck Cutting Width: 54 in
  • Deck Wash: No
  • Deck Material: 11-gauge steel
  • Deck Engagement: (PTO) Electric
  • Deck Construction: Fabricated
  • Blade(s): 3
  • Deck Lift: Foot pedal with Dial Adjust
  • Cutting Height Range: 1” – 4.5”
  • Anti-Scalping: 3 gauge wheels
  • Deck Positions: 15
Warranty
  • Warranty: 3-year unlimited hours
  • Frame Warranty: Lifetime Limited
  • Deck Shell Warranty: Lifetime limited
  • Commercial Warranty: No
Chassis
  • Frame: 2” x 2” tubular steel
  • Turning Radius:
  • ROPS: No
  • Rear Tow Hitch: Yes
  • Corrosion Protection: Yes
Controls
  • Cruise Control: No
  • Brakes: Disc
  • Steering Control: Lap Bars
Comfort
  • Seat Type: 20″ high back
  • Armrests: No
  • Seat Adjustment: Knob

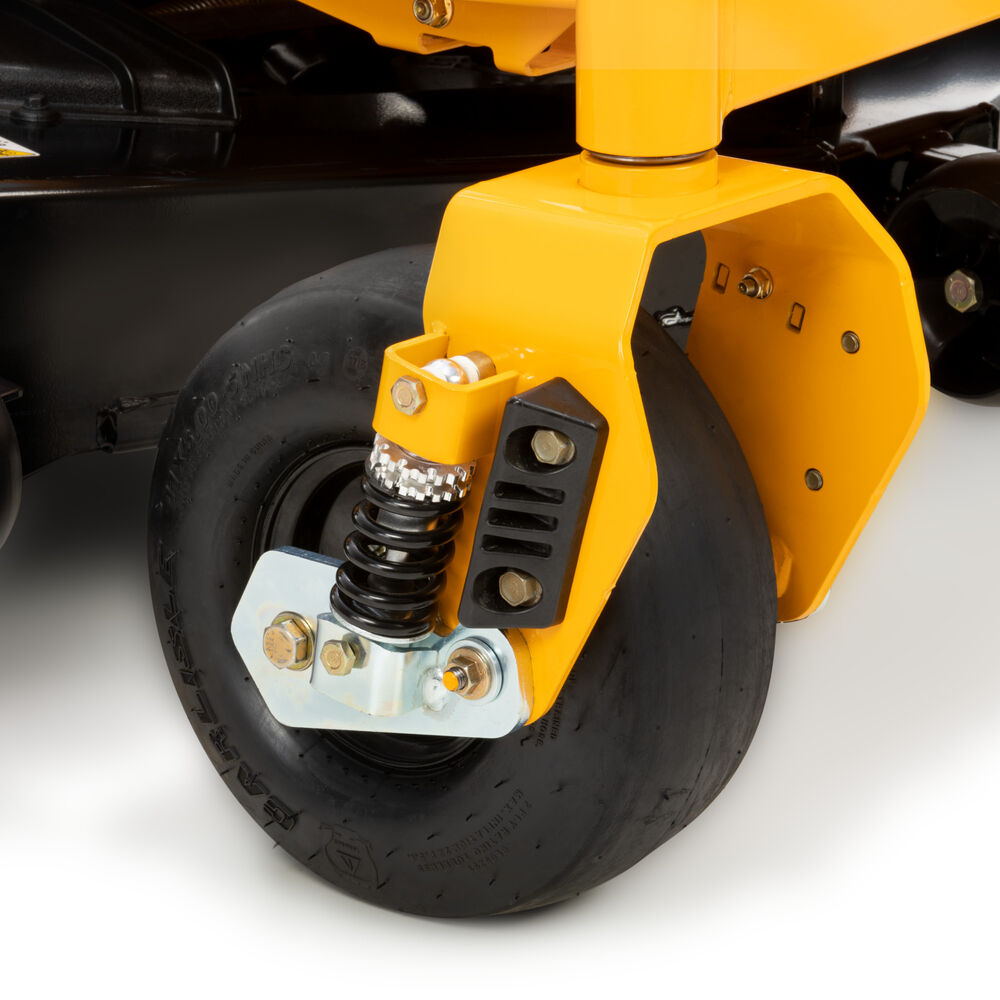

  • Front Caster Suspension: Yes
Wheels
  • Rear Tires: 20”x 12”- 8”
  • Front Tires: 11″x 6″-5″
  • Tire Tread: Turf Master / Multi Trac
Additional Specifications
  • Hour Meter: Available separately
  • Mulch Kit: Available separately
  • Headlight(s): Dual-LED
  • Cup Holder: Yes
  • Operator Presence System: Yes
  • Parking Brake: Lap Bar Integrated
  • Model Number: 17AIEACMA10
  • AIR FILTER:  KM-11013-0752 OR 490-200-C022
  • OIL FILTER:  KM-49065-0721
  • ENGINE OIL: 490-000-C044
  • FUEL FILTER:  KM-49019-0027 OR 490-240-0001
  • SPARK PLUG:  KM-BPR4ES
  • DECK BELT:  954-04329A OR 490-501-C067
  • DRIVE BELT: 954-04317A OR 490-501-C069
  • BLADES:  742P05086 OR 490-110-C194
  • XTREME BLADE: 742P05086-X OR SET 490-110-C205
  • IGNITION KEY:  925-1745A
  • HOUR METER: 490-900-C075
