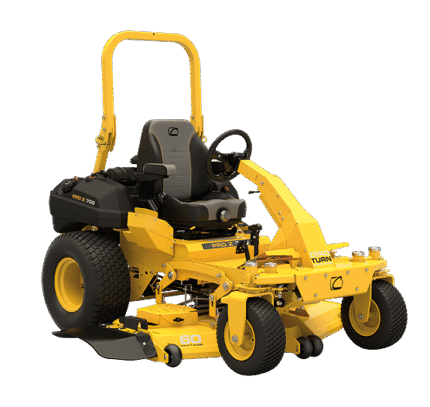

Cub Cadet Pro Z 760 S KW 53UIHTUV050
$14,399.00
Description
- 31 HP Kawasaki FX921v (999cc) engine and 14cc Parker HTG transmission
- 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
- 3-year limited commercial warranty (no hour limitations)
Engine
- Engine Brand: Kawasaki
- Engine Model: FX921V
- Engine Displacement: 999cc
- Engine Output: 31 HP
- Fuel Tank Capacity: Twin 7.45 gal. tanks (14.9 gal. total) with electronic fuel gauge
Drive System
- Transmission: Parker HTG 14cc pump 280cc wheel motor
- Forward Speed: 12 mph
- Reverse Speed: 6 mph
Cutting Deck
- Deck Cutting Width: 60”
- Deck Material: fabricated 7ga. (.187”) steel shell
- Deck Engagement (PTO): electronic fingertip engagement pto
- Deck Construction: 7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
- Spindle Construction: 8″ sealed cast aluminum housing (maintenance-free)
- Blade(s): Triple-blade / High-lift blade (standard) Marbain Blade
- Cutting Height Range: 1″ – 5″
- Anti-Scalping: 2 Front HD w/ Bushings & Grease Zerk
- Deck Positions: Foot pedal with spring assist 16 Positions
Chassis
- Frame: Fully welded, full-length 3/8 x 5″ laser cut steel / integrated tie-down slots
- Front Axle(s): 2″ x 3″ solid axle tube with ISO dampening suspension
- Front Tires: 16″ x 6.5″ – 8″ turf
- Rear Tires: 24″ x 12″ – 12″ (Turf Tread)
- Tire Tread: Turf Tread
- ROPS: 2″ x 2″ spring-latch tool-less foldable 3 position
- Bumper: 5/16″ Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
- Yokes: 1/2″ thick steel front yokes
Controls
- Seat: Cushion with seat belt
- Brakes: Hand-operated lever with integrated hydro pump release lever
- Steering Wheel Control: High Performance Steering Wheel with electronic power steering & Foot-pedal ControL
Comfort
- Arm Rests: padded arm rests
- Seat Suspension: High-back dial suspension with EVC cushion, ISO mounted base (lateral suspension)
- Seat Adjustment: angle back adjust and lumbar support
Dimensions
- Dimensions: L/W/H 86″ L x 62″ W x 52″ H
- Weight (approx.): 1562 lbs.
Additional Specifications
- Hour Meter: Standard electronic
- Discharge Chute: High-density, impact-resistant rubber
- Cup Holder: Intergrated into Side Pod
- Model Number: 53UIHKUV050
Warranty
- Deck Shell Warranty: 5 year / 1,750 hour limited deck construction warranty
- Commercial Warranty: 3 year / no hour limit commercial warranty
- AIR FILTER: KM-11013-7044
- PRE FILTER: KM-11013-7045
- OIL FILTER: KM-49065-0724
- FUEL FILTER: KM-49019-0027 OR 490-240-0001
- SPARK PLUG: KM-BPR5ES
- DECK BELT: 954-04319
- PTO BELT: 954-05128
- DRIVE BELT: 954-05037A
- BLADES: 942-04415 OR 490-110-C163
- XTREME BLADE: 02005019-X
- IGNITION KEY: 925-06908
- TRANS FILTER: PH-411135S
- TRANS FLUID: 490-000-C051 NEED 96OZ
- ENGINE OIL: 490-000-C044
